XAB Series--OOH LED a wɔde kyerɛ
XAB Series yɛ abɔnten LED display a ɛyɛ adwuma yie-a wɔayɛ ama digyital dawurubɔ ne ɔmanfoɔ nkitahodiɛ akɛseɛ-. Ɛde ma kosi sɛ10,000 nits hyerɛnne94% honam fam abibifo a wɔkata so, a ɛma wotumi hu ade denneennen na kɔla yɛ adwuma yiye wɔ owia hann tẽẽ mpo mu.
Wɔde a3840Hz a ɛkorɔn refresh rate, display no ma wotumi bɔ video no yiye a ɛnhyerɛn. Nea ɛyɛ denIP68-rated ahobammɔnhyehyɛe no hwɛ hu sɛ ɛyɛ adwuma pintinn wɔ osu, mfutuma, ɔhyew, ne mmeae afoforo a emu yɛ den.

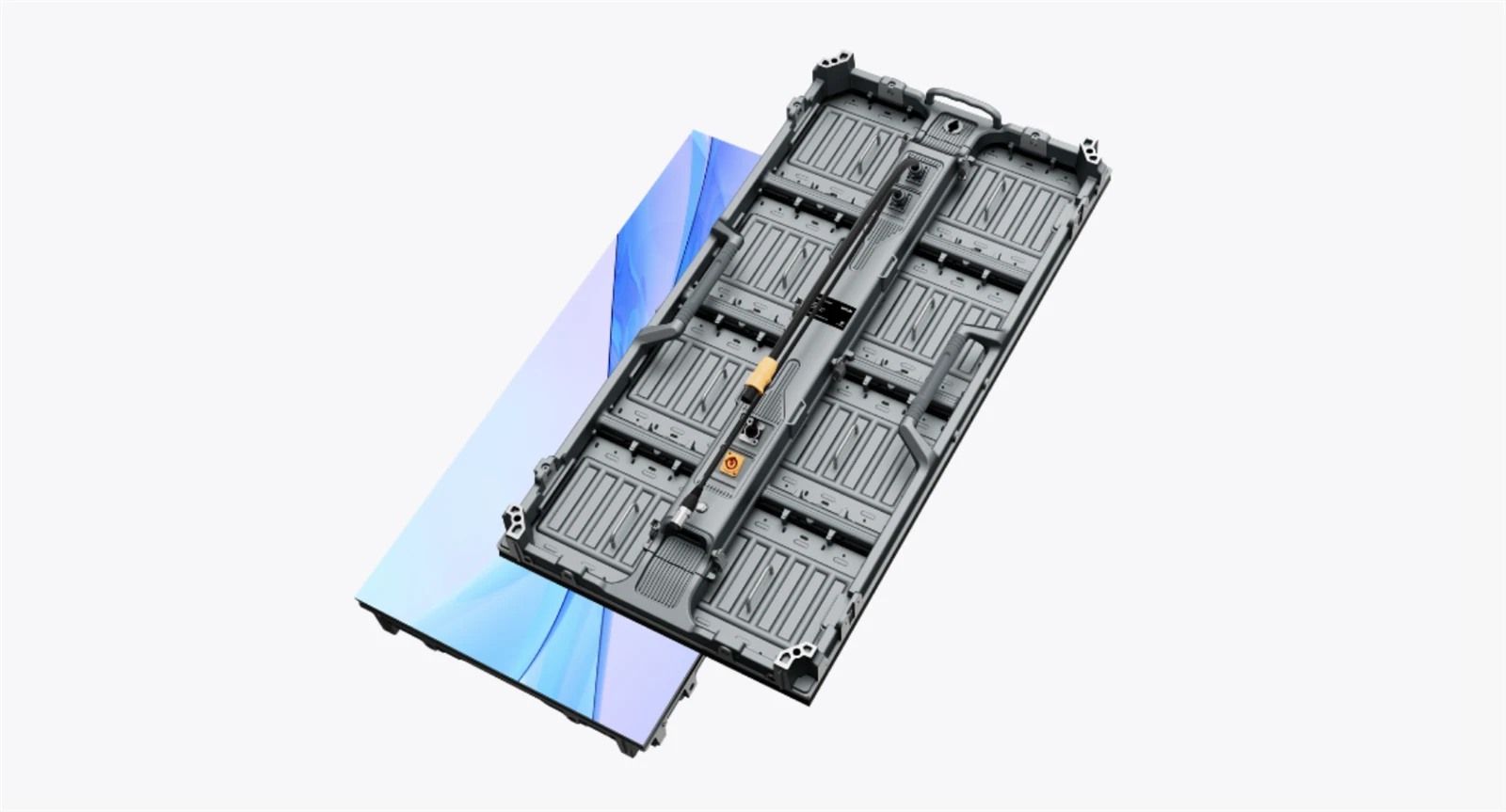

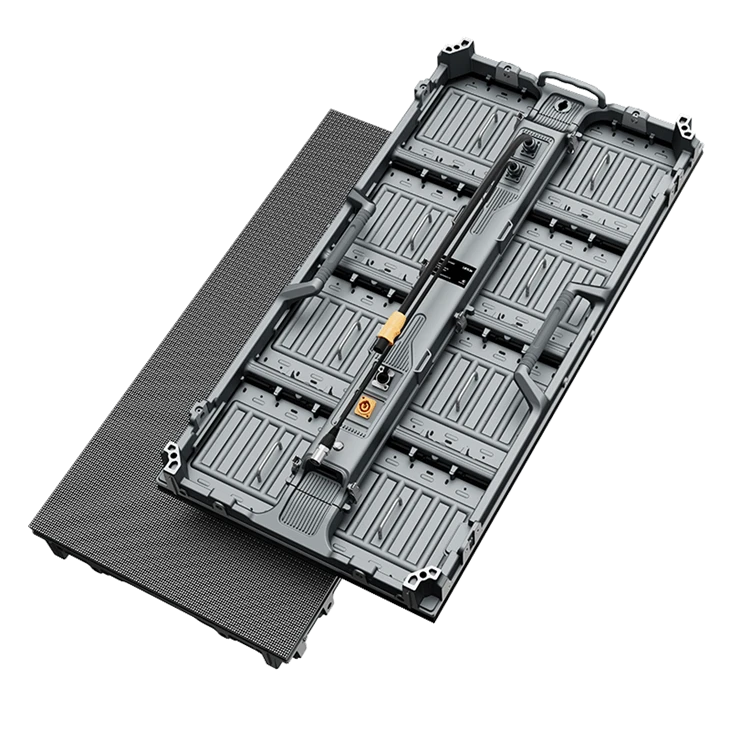

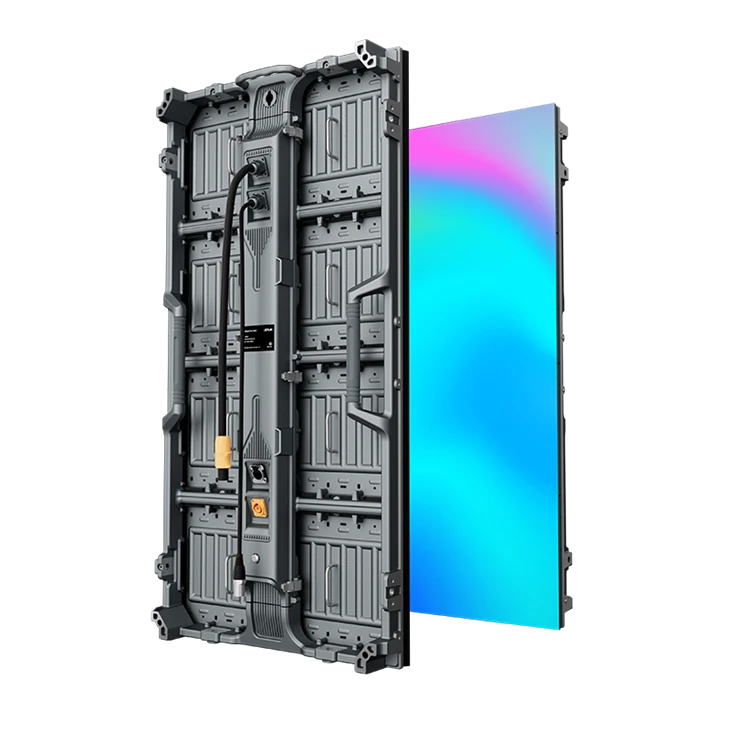

Wɔ ɔkwan a ɛyɛ pɛpɛɛpɛ sodie-a wɔatow aluminium kabinetnea ɛyɛ pɛpɛɛpɛ-aluminum module nnyinaso, nhyehyɛe no de petee a eye kyɛn so, ɔhyew a ɛkɔ ntɛmntɛm, ne bere tenten-bere a ɛyɛ den ma. Sɛ wɔde nneɛma a hann sua-asɛe no ka ho a, wɔayɛ XAB Series no ama abɔnten adwumayɛ a ɛtrɛw a adwumayɛ a ɛyera kakraa bi wɔ bere mu.
Nneɛma Titiriw a Ɛwɔ Hɔ
Wɔasi maa Abɔnten So Nneɛma a Ɛyɛ Den
Wɔayɛ XAB Series no ama abɔnten dwumadie a ɛkyɛ-wɔ mmeaeɛ a osuo, nsuo, mfuturo, ne mpoano nsɛeɛ wɔ mu.
Ne koraa sealed structural design hwɛ hu sɛ stable adwumayɛ aseadwumayɛ a ɛkɔ so 24/7, a ɛmma nsu ne mfutuma nnya ɛlɛtrɔnik nneɛma a ɛwɔ mu no so nkɛntɛnso.
Na ɛne anIP68-level ahobammɔ nhyehyɛe, ɔyɛkyerɛ no kɔ so yɛ adwuma a wotumi de ho to so wɔ tebea horow a emu yɛ den te sɛ osu a ɛtɔ kɛse, nkyene mframa a ɛda adi, ne anhweatam so anhwea a atwa yɛn ho ahyia mu, na ɛma nhyehyɛe no gyina pintinn ne ɔsom nkwa nna tu mpɔn kɛse.
10,000 Nits Ultra-Han a ɛkorɔn ma Awia hann a wotumi hu
Abɔnten so aguade ho dawurubɔ hwehwɛ sɛ wotumi hu ade bere nyinaa wɔ owia hann tẽẽ ase, baabi a mpɛn pii no nneɛma a wɔde kyerɛ a wɔahyɛ da ayɛ no hwere nea emu da hɔ na ennya nkɛntɛnso no.
XAB Series no de ma kosi10,000 nits hyerɛn, a ɛhwɛ hu sɛ emu da hɔ na wotumi kenkan wɔ hann a ɛkɔ soro mpo mu.
Saa dwumadie a ɛkorɔn-hyerɛn yi ma ɛfata ma akwan akɛseɛ so dawurubɔ nkrataa, aguadiɛ dawurubɔ, ne ɔmanfoɔ nneɛma akɛseɛ a wɔde si hɔ a ɛho hia sɛ wotumi hu ade denneennen awiabere.
High-Nsonsonoe Mfonini Adwumayɛ a ɛwɔ 94% Black Coverage
Sɛnea ɛbɛyɛ a mfonini no mu dɔ ne akenkan bɛtu mpɔn wɔ mmeae a ɛyɛ hann no, XAB Series no fa a94% honam fam tuntum soro nhyehyɛea ɛtew hann a ɛdannan wɔ piksel ahorow ntam no so.
Wɔde afrafra a10,000:1 nsonsonoe a ɛwɔ mu, ɔyɛkyerɛ no de:
- Nneɛma tuntum a emu dɔ
- Mfonini no anoano a ɛyɛ nnam
- Kɔla adwumayɛ a emu da hɔ kɛse
Eyi ma wotumi hu ade yiye a ɛyɛ pintinn wɔ mmeae ahorow a wotumi hwɛ ade ne kanea tebea horow mu.
Die-Cast Aluminum Structure a ɛwɔ Ɔhyew so tumi a Etu mpɔn
Wɔ abɔnten so nneɛma akɛseɛ a wɔahyɛ da ayɛ ho adwuma no, adansiɛ a ɛgyina pintinn ne ɔhyeɛ sohwɛ ho hia ma ahotosoɔ a ɛbɛkyɛ-.
XAB Series no de adie-cast aluminium kabinet nhyehyɛeama rigidity a ɛkorɔn ne panel alignment pɛpɛɛpɛ wɔ video afasu akɛse mu.
Bere koro no ara mu no, aconductive nneɛma ɔhyew dissipation nhyehyɛekyekyɛ ɔhyew mu pɛpɛɛpɛ wɔ kabinet no mu, na ɛtew mmeae a ɛyɛ hyew a ɛba na ɛma ɔhyew a ɛyɛ den wɔ adwumayɛ mu no so.
Wei ma LED nkwa nna tu mpɔn, ɛtew mpɛn dodow a wɔsiesie so, na ɛhwɛ ma ɛyɛ adwuma daa wɔ abɔnten mmeae a ɛhɔ yɛ hyew kɛse-.
Mfiridwuma Ho Nsɛm a Wɔakyerɛkyerɛ Mu
|
Adeɛ |
Nsɛm a Wɔakyerɛkyerɛ mu |
|
Nneɛma a Wɔyɛ no Ntoatoaso |
XAB Series Abɔnten LED Kyerɛkyerɛ |
|
Dwumadie no Su |
Abɔnten so Fixed Installation |
|
Pixel Nkɔmmɔbɔ |
Ennu anaasɛ ɛne 10mm yɛ pɛ |
|
Hann a ɛhyerɛn |
Ɛboro anaasɛ ɛne 10,000cd/Million yɛ pɛ |
|
Refresh Rate a Wɔde Yɛ Nneɛma |
Ɛboro anaasɛ ɛne 3840Hz yɛ pɛ |
|
Hwɛ Angle |
Ɛboro digrii 160 anaasɛ ɛne no yɛ pɛ |
|
Ahobammɔ Gyinabea |
IP68 |
|
Ɔkwan a Wɔfa so Siesie Nneɛma |
Anim & Akyi Nsiesiei |
|
Kabinet Nneɛma a Wɔde Yɛ |
Die-a wɔtow Aluminium |
|
Nsonsonoe a Ɛma Nsonsonoe |
10,000:1 |
|
Honam fam Abibifo Beae |
94% |
|
Tumi a Wɔde Di Dwuma |
25% Ba fam Sen Amanneɛbɔ Abɔnten LED Displays |
|
Signal Backup a Wɔde Yɛ Nneɛma |
Dual-Module Nsɛnkyerɛnneɛ Backup |
|
Ɔhyew a Wɔsɛe no |
Conductive Material Ɔhyew a Wɔsɛe no Nhyehyɛe |
|
Ahwehwɛde a Ɛfa Onwini Ho |
Mframa foforo biara nni hɔ-Ahyɛnsode a Wɔde Yɛ Adwuma |
|
Adwumayɛbea a Wɔde Di Dwuma |
Abɔnten so |
|
Installation Type |
Wɔasiesie Abɔnten so Nneɛma a Wɔde Sisi Hɔ |
|
Nneɛma a Wɔde Kyerɛkyerɛ |
Full-Kɔla Abɔnten LED Kyerɛkyerɛ |
Nsɛm a Wɔde Di Dwuma
Dɛn Nti na Wopaw Yɛn?
Mfitiaseɛ Display Manufacturer
Fie mu nneɛma a wɔyɛ no wie
efi R&D so kosi nhyiam a etwa to so
Nneɛma a Wɔyɛ a Ɛkɔ Anim
60+Patents a wɔde ma
80+Nidi a wɔde ma
Wiase Nyinaa Dwumadie Osuahu
Wogye di wɔ100+aman a ɛwɔ hɔ nyinaa
aguadi ne aban nnwuma
Tumi a Wɔde Yɛ Nneɛma a Wotumi De Ho To So
3nneɛma a wɔyɛ no nnyinaso
ama wiase nyinaa nneɛma a wotumi de ho to so
Su a Wɔagye Di Dwuma
Strict quality control a wɔtaa akyi
denam amanaman ntam adansedi nkrataa so
Wiase Nyinaa Mfiridwuma Mmoa
Mfiridwuma ho mmoa a wɔyɛ adwumaden
ansa na wɔrewo ne bere a wɔawo awie
FAQ
Asɛmmisa: So XAB Series no betumi aboa screen akɛse a wɔayɛ no sɛnea wɔpɛ?
A: Yiw. Modular cabinet nhyehyeɛ no boa screen dimensions a wɔayɛ ama fixed outdoor installation projects.
Asɛmmisa: Akwan bɛn na wɔfa so de si hɔ?
A: XAB Series no boa ɔfasu-a wɔde ahyɛ, dade-nhyehyɛe, ne nhyehyɛe a wɔahyɛ da ayɛ a wɔahyɛ da ayɛ-nhyɛase.
Asɛmmisa: So XAB Series no fata ma abɔnten so adwumayɛ a ɛkɔ so?
A: Yiw. Ɔyɛkyerɛ no boa abɔnten adwumayɛ a ɛkɔ so a ɛwɔ dual-module signal backup ne conductive heat dissipation structure.
Q: So XAB Series no hia mframa-a wɔde yɛ adwuma foforo?
A: Dabi, wɔayɛ ɔhyew a wɔsɛe no no sɛnea ɛbɛyɛ a wobetumi de adi dwuma wɔ abɔnten a mframa a wɔde yɛ adwuma foforo biara nni mu.
Q: So wobetumi de XAB Series no adi dwuma ama LED screen akɛse-format?
A: Yiw. Modular kabinet nhyehyeɛ no boa kɛseɛ-format abɔnten LED screen nhyiamu.
