Nkyerɛmu:

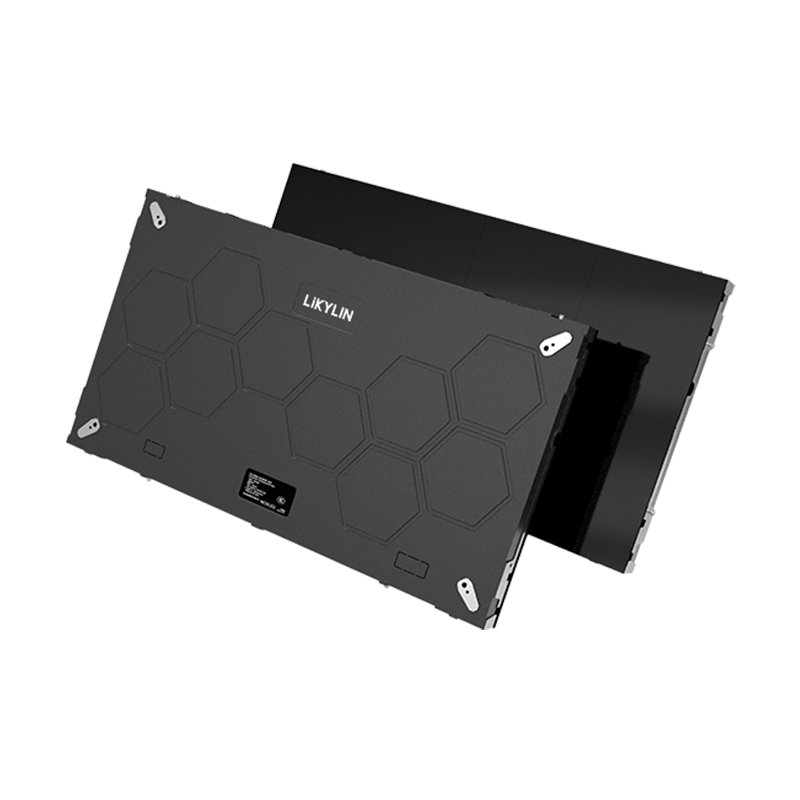

NX Series kabinet no ka mfasoɔ a ɛwɔ full flip chip COB mfiridwuma, die casting ne integrated driver boards bom ma ɛde aniwa mu osuahu a ɛtwa toɔ ma. Wɔayɛ no sɛ sika kɔkɔɔ ratio 16:9, ɛdannan pɛpɛɛpɛ ma ɛne ɔyɛkyerɛ ahiadeɛ ahodoɔ hyia na ɛde aniwa so nsunsuansoɔ a ɛyɛ nwonwa ma ofie anigyeɛ ne adwumayɛfoɔ nkyerɛkyerɛmu.Ɛnam ne ultra-lightweight, robust enclosure ne ɔhyew dissipation a ɛkyɛn so ma long-term stability, NX Series yɛ paw a eye ma wɔn a wɔrehwehwɛ high-quality display performance.
Amanneɛ kwan so LED display ne SMD packaging, saa packaging mfiridwuma yi kyerɛ kɔkɔɔ, ahabammono, bruu kɔla abiɛsa a LED chip nam bracket ma fixing, emu a wɔde epoxy resin ne denam sika kɔkɔɔ anaa kɔbere waya nkitahodi, denam solder paste a wɔasiesie wɔ PCB board, ne reflow soldering, sɛnea ɛbɛyɛ a LED kanea beads no pɛpɛɛpɛ nhyehyɛe wɔ PCB board, na ama wɔanya nkɛntɛnso a display, no mfiridwuma nhyehyɛe no dɔɔso, na Saa mfiridwuma nhyehyɛe yi dɔɔso, na ɛyɛ den, bere koro no ara mu, esiane hia a ehia sɛ wonya adwumayɛbea pɔtee bi nti, enti LED point pitch no ntumi nhu sɛ ɛyɛ ketewaa, nea esua koraa no betumi ayɛ P1.2 anaa nea ɛte saa nkutoo. COB package ma LED chip packaging nhyehyɛe no yɛ mmerɛw, tẽẽ integrated LED chip wɔ PCB board, atifi gluu fixed, adeyɛ no nyinaa yɛ mmerɛw kɛse, enhia reflow soldering, LED chips yɛ kɛse stable, bere a point pitch nso betumi ayɛ ketewaa.

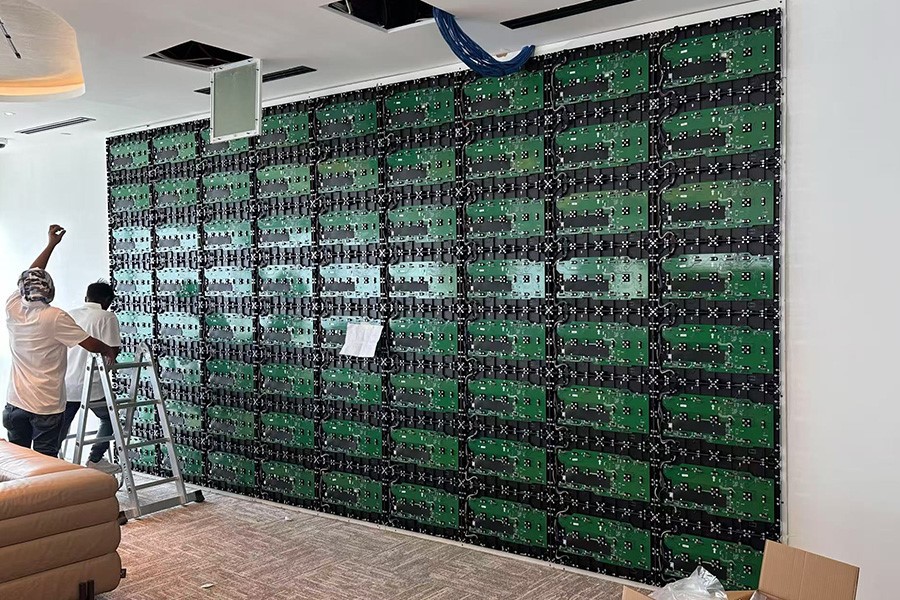

Amammerɛ LED display wɔ production ne transportation, installation, esiane kanea beads no da adi wɔ soro, nsateaa touch anaasɛ wɔ installation of other things collision bɛma kanea beads off, nea ɛde ba wɔ pixel point bi nyɛ hann, eyi titiriw efisɛ ɛyɛ welded to kanea beads wɔ PCB board, collision to the easy to the drop to the drop light, akyiri yi sɛ wopɛ sɛ wosiesie a ebetumi ayɛ nea technician to the scene of the weld or directly replace the unit plate Eyi te saa titiriw efisɛ wɔde welded beads no wɔ PCB board no so, na ɛnyɛ den sɛ ɛbɛbɔ no betumi ama hann ayera. COB encapsulated display ahobammɔ adwumayɛ ye, wɔ installation ne dwumadie a wɔde di dwuma no remma kanea beads no nhwe ase, enti ne soro nso yɛ kɛseɛ resistant to collision, stability no tu mpɔn kɛseɛ. Titiriw no, nsonsonoe titiriw a ɛda SMD packaging ne COB screen packaging ntam ne atifi hɔ nsɛm abiɛsa no, sɛ yɛhwɛ nnwuma nkɔso kwan so a, COB screen bɛyɛ akwankyerɛ titiriw daakye, COB display ne atetesɛm surface-mounted mfiridwuma a display no toto ho sɛ ɛwɔ ahotoso kɛse, ɛho ka sua, ntam kwan ketewaa, wear-resistant impact, ɔhyew dissipation tumi ne mfaso afoforo pii.
Su:
- Full-flip-chip COB MicroLED ma twa-edge hann ne nea ɛtra hɔ kyɛ
- 8K nsusuwii a ɛyɛ nwonwa a razor-sharp pixel pefee
- 100,000:1 nsonsonoe nsusuwii ma abibifo a emu dɔ ne ahoɔden a ɛyɛ nwonwa
- 3840Hz ultra-smooth refresh rate hwɛ hu sɛ flicker-free adwumayɛ
- Ultra-slim design-ɛyɛ hare, ɛyɛ fɛ, ɛyɛ papa ma nhyehyɛe a ɛkɔ ntɛmntɛm-
- Ne nyinaa-wɔ-biako nkabom: tumi, gye kaad & HUB board wɔ biako mu
- Wɔayɛ no ama 24/7 ahotosoɔ wɔ mission-critical installations mu
- Common-cathode ahoɔden-korae architecture
